| 起源の場所: | 中国 |
| ブランド名: | VEOLIA |
| 証明: | CE |
| モデル番号: | Veolia EDI MK-3PHARMHT |
| ドキュメント: | Veolia EDI catalog.pdf |
| 最小注文数量: | 1 PC |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 月額60000ユニット |
| EDIスタック抵抗率: | ≥10mohm-cm | EDIスタックナトリウム: | 99.9％以上の除去 |
|---|---|---|---|
| EDIスタックシリカ（SIO2）: | 最大99％の除去 | EDIスタックお湯の消毒サイクル: | 160 |
| EDIスタック入口圧力: | ≤6.9バー（100 psi） | EDIスタック圧力降下: | 1.4–2.8バー |
| EDIスタック総交換可能な陰イオン（CACO3としてのお茶: | ≤63.6ppm | EDIスタック導電率相当: | ≤109μs/cm |
| 応用: | グレードの超純水の準備 |

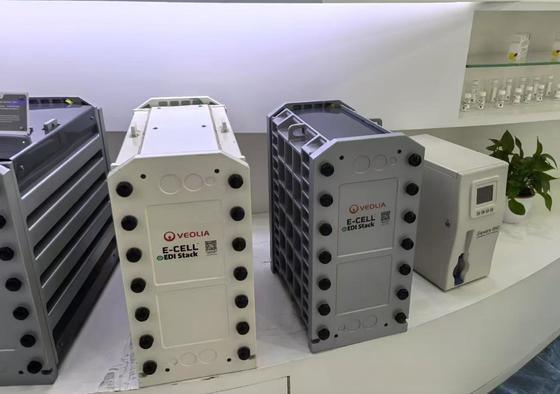

The Veolia MK-3PharmHT hot water disinfection EDI module is a high-performance electrodeionization (EDI) product from Suez (Veolia)'s E-CELL® series, designed for industries requiring consistent ultrapure water and stringent hygiene standards. Utilizing advanced hot water disinfection technology (up to 85°C), this module consistently produces high-purity water with a resistivity of ≥10 MΩ·cm without the need for chemical regeneration, significantly reducing operating costs and simplifying system operation.
1. Core Features:
High-Temperature Disinfection Capability: Supports hot water disinfection at temperatures up to 85°C, enabling up to 160 disinfection cycles, effectively inhibiting microbial growth and meeting the stringent hygiene requirements of the pharmaceutical and biotechnology industries.
Excellent Product Water Quality: Consistently produces water with a resistivity of ≥10 MΩ·cm, a sodium ion removal rate of ≥99.9%, and a silica removal rate of up to 99%, ensuring ultrapure water quality superior to traditional mixed-bed processes.
Energy Efficiency: The module utilizes a resin-filled concentrate chamber and countercurrent operation, resulting in low power consumption and a recovery rate of up to 90-96%. Regeneration requires no brine or chemicals, reducing environmental pollution and operational complexity.
Sustainable and Stable Performance: The module utilizes a contamination-resistant design and high-quality materials, and comes with a three-year prorated warranty, ensuring long-term leak-free operation and stable water quality.
Modularity and Convenience: The module features a compact design (approximately 30 × 61 × 54 cm, weighs approximately 100 kg) and supports parallel connection for easy expansion of water production capacity (single module flow rate range: 1.6–5.4 m³/h), making it suitable for systems of varying sizes.
2. Main Applications:
Pharmaceutical Industry: Water for Injection (WFI), purified water preparation, and high-temperature sterilization processes.
Semiconductor and Microelectronics: Ultrahigh-purity water for chip cleaning and wafer fabrication.
Power Generation and Energy: Boiler feed water and turbine cooling water.
Laboratory and Food & Beverage: Water for analytical instruments and food processing.
3. Why Choose MK-3PharmHT? Veolia MK-3PharmHT EDI module integrates ion exchange membrane and resin technology, and realizes continuous deionization and resin regeneration through DC electric field, ensuring the production of ultrapure water without chemical pollution and low operation and maintenance costs. Its excellent heat resistance and stability make it an ideal choice for high-standard water treatment projects.
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m3/h (15 gpm) |
| Flow Rate Range | 1.6-5.4 m3/h (7.0-23.8 gpm) |
| Dimensions | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Shipping Weight | 100 kg (220 lbs) |
| Recovery | Up to 96% |
| Voltage | 0-300 VDC |
| Amperage | 0-5.2 ADC |
For detailed performance projections and application-specific guarantees, Veolia offers the Winflows® software or direct technical support.
For more models and specifications, visit our Veolia EDI Module page.
