| 起源の場所: | 中国 |
| ブランド名: | Dupont |
| 証明: | CE |
| モデル番号: | Integratec™XP 77 Ig（以前のSFP 2880xp） |
| ドキュメント: | UF-IntegraTec-P-Series-PVDF...49.pdf |
| 最小注文数量: | 1 PC |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | ウエスタンユニオン、T/T |
| 供給の能力: | 月額60000ユニット |
| XP 77 Ig有効膜領域: | 8インチ | XP 77モジュールあたりのIG流量: | 2.0–8.5m³/hr（8.8–37.6 gpm） |
|---|---|---|---|
| XP 77 Ig最大飼料圧力: | 20°Cで6.25バー（90.65 psi） | XP 77 XP 77 Igの不法孔直径: | 0.03 µm |
| XP 77 Ig最大逆洗い圧力: | 2.5バー（36 psi） | マックス。このモジュールのTMPを操作します: | 2.1バー |
| このモジュールの最大操作空気洗浄フロー: | 12 nm3/hr | XP 77 IG使用: | 大規模な水処理 |
| XP 77 IG Adavantage: | ハイフラックス |
Featuring exceptional fouling resistance and stable high-flux performance, the DuPont IntegraTec XP 77 IG ultrafiltration membrane delivers reliable water purification for critical industrial applications. This advanced membrane provides excellent removal rates for bacteria, viruses, and endotoxins while maintaining low energy consumption and minimal maintenance requirements.
Ideal for pharmaceutical manufacturing, microelectronics production, and healthcare water systems, this membrane ensures compliance with stringent quality standards while offering sustainable operation with reduced chemical usage and wastewater generation.
| Attribute | Value |
|---|---|
| Effective membrane area | 8 inch |
| Flow rate per module | 2.0–8.5 m³/hr (8.8–37.6 gpm) |
| Max feed pressure | 6.25 bar (90.65 psi) at 20°C |
| Nominal pore diameter | 0.03 µm |
| Max backwash pressure | 2.5 bar (36 psi) |
| Max operating TMP | 2.1 bar |
| Max operating air scour flow | 12 nm3/hr |
| NaOCl (max.) | 2,000 mg/L |
| Certifications | ISO 9001, NSF, CE |
| Application | Pharma and Beverage |

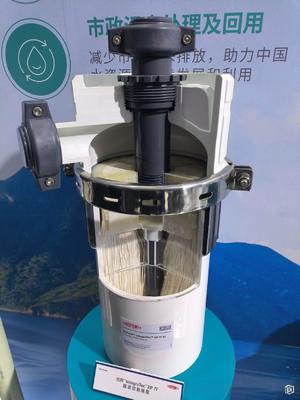

The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.
| Model | Type | Membrane Area (m²/ft²) | Module Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|
| XP77 IG | Industrial | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| XP77 | NSF/ANSI 61 and 419 | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-110 l/m2/hr | 24-65 gfd |
| Flow range | 2.0 - 8.5 m3/hr | 8.8 - 37.4 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 90.65 psi |
| Max. operating TMP | 2.1 bar | 30.5 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
| NaOCl (max.) | 2,000 mg/L | |
| Particle size (max.) | 300 µm | |
| Flow configuration | Outside in, dead end flow | |
For application cases, please visit: www.fgwater.com/Industries/
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment equipment design, manufacturing, trading and shipment served for main industrial sectors.
Our main products include a variety of water purification and treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water reverse osmosis (BWRO), ultrafiltration (UF) system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners.
